HOFTRONIC™ - Junction Box - Cable Connector - IP68 Waterproof - For 4 cables - 4 to 12 mm - Terminal block connector

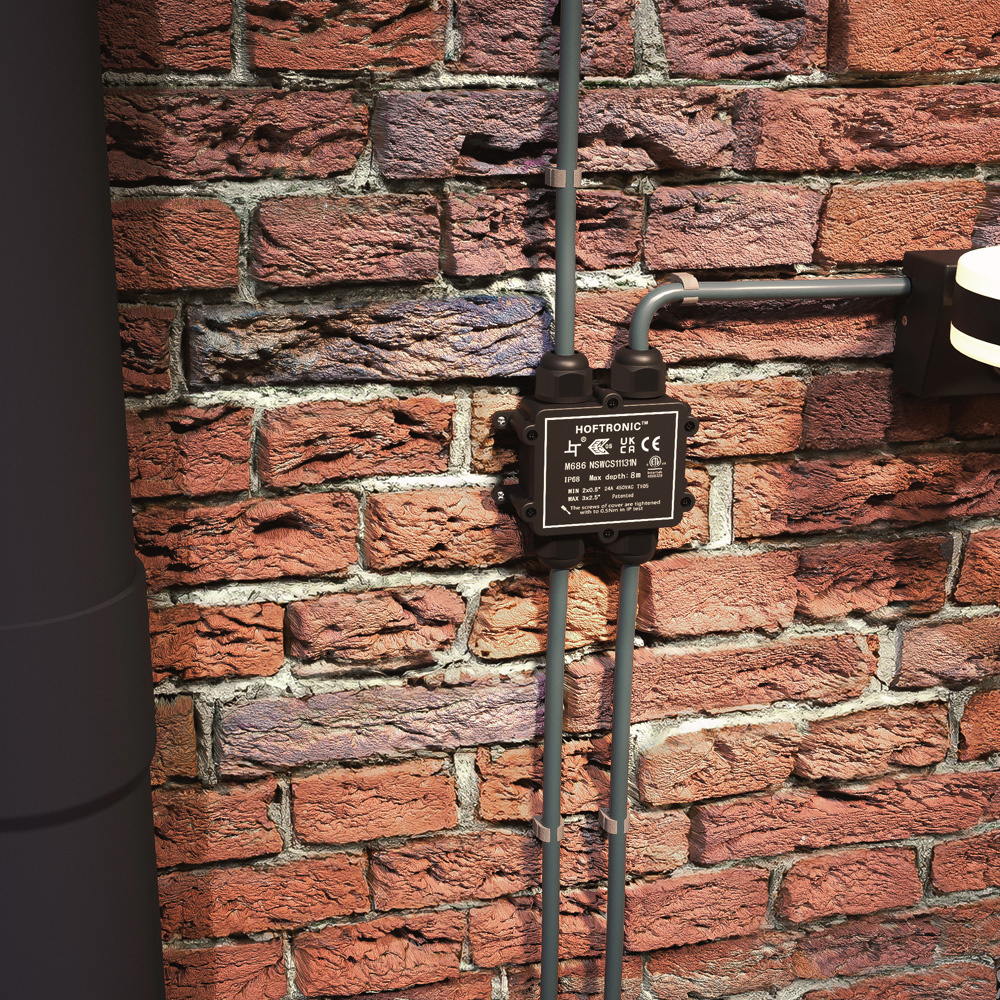

Waterproof junction box for garden and outdoor lighting

This junction box is the ideal solution for waterproofing 4 outdoor cables or power cables in your garden or for outdoor lighting. Ideal for easy power supply of multiple devices outdoor. Easily turn one cable into two. Thanks to its high IP68 protection rating, it is waterproof and can be used outdoors or underground. The junction box is suitable for 2- and 3-wire cables (neutral, phase, earth) with a wire thickness of 0.5 mm² - 2.5 mm² or a cable-thickness of 4 to 12 mm. The rubber inserts supplied make it easy to adapt the junction box to different cable thicknesses.

Product benefits

• IP68 waterproof: The IP68 protection rating makes this product perfect for outdoor installation. No more tedious installation of cable sleeves; this junction box always ensures a watertight connection wherever you place it.
• Suitable for most cables: The included inserts allow you to connect cables with a wire size of 0.5 mm² to 2.5 mm² or a cable thickness of 4 to 12 mm to the junction box. This makes it suitable for almost all types of cable used in and around the house.
• 4-gang: For watertight connection of 4 cables.
• Ideal for garden installation: Connecting your garden lighting has never been easier. You can easily hide the junction box underground for a neat finish.
• Durable plastic: The junction box is made from high-quality, durable plastic and is suitable for use in temperatures from -40 °C - 105 °C.
• Easy installation: Installation is a breeze, without the hassle of cable joints or resin.
• 2-year warranty: At INTOLED, we deliver only the best quality. That is why you receive a 2-year warranty on this product. Should anything break during this period, we will provide a replacement free of charge.

How does this junction box work?

The junction box has 4 rubber inserts for 8 to 12-mm cables. You will also receive 4 additional rubber inserts for smaller 4 to 8-mm cables. Thread the cable successively through the screw cap, the clamping claw (ring) and the rubber ring. Connect the cables using the supplied 4-pin terminal blocks (3 pcs). Secure the cables to the junction box by tightening the screw caps. Finally, screw the cover back onto the junction box. There is a waterproof gasket between the lid and the box to ensure a watertight seal. You now have a watertight cable connection.

Easy to install

This watertight junction box allows you to make a safe and watertight connection quickly and easily. You won't need a resin sleeve, and it is much faster and simpler to install compared to traditional junction boxes. If you want to use the box underground, make sure to install it at a maximum depth of 8 metres.
