HOFTRONIC™ - LED panel - 60x60 cm - 36 Watts - 4860 Lumen - 135 lumen/watt - 4000K neutral white - Flicker free - UGR19 - Suitable for the office - 5 year warranty
![LED panel - 60x60 cm - 36 Watts - 4860 Lumen - 135 lumen/watt - 4000K neutral white - Flicker free - UGR19 - Suitable for the office - 5 year warranty](https://cdn.webshopapp.com/shops/189995/files/458842279/200x200x2/hoftronic-led-panel-60x60-cm-36-watts-4860-lumen-1.jpg)
![LED panel - 60x60 cm - 36 Watts - 4860 Lumen - 135 lumen/watt - 4000K neutral white - Flicker free - UGR19 - Suitable for the office - 5 year warranty](https://cdn.webshopapp.com/shops/189995/files/458371567/200x200x2/hoftronic-led-panel-60x60-cm-36-watts-4860-lumen-1.jpg)
![LED panel - 60x60 cm - 36 Watts - 4860 Lumen - 135 lumen/watt - 4000K neutral white - Flicker free - UGR19 - Suitable for the office - 5 year warranty](https://cdn.webshopapp.com/shops/189995/files/458371559/200x200x2/hoftronic-led-panel-60x60-cm-36-watts-4860-lumen-1.jpg)
![LED panel - 60x60 cm - 36 Watts - 4860 Lumen - 135 lumen/watt - 4000K neutral white - Flicker free - UGR19 - Suitable for the office - 5 year warranty](https://cdn.webshopapp.com/shops/189995/files/458371561/200x200x2/hoftronic-led-panel-60x60-cm-36-watts-4860-lumen-1.jpg)
![LED panel - 60x60 cm - 36 Watts - 4860 Lumen - 135 lumen/watt - 4000K neutral white - Flicker free - UGR19 - Suitable for the office - 5 year warranty](https://cdn.webshopapp.com/shops/189995/files/458371563/200x200x2/hoftronic-led-panel-60x60-cm-36-watts-4860-lumen-1.jpg)
![LED panel - 60x60 cm - 36 Watts - 4860 Lumen - 135 lumen/watt - 4000K neutral white - Flicker free - UGR19 - Suitable for the office - 5 year warranty](https://cdn.webshopapp.com/shops/189995/files/458371572/200x200x2/hoftronic-led-panel-60x60-cm-36-watts-4860-lumen-1.jpg)
![LED panel - 60x60 cm - 36 Watts - 4860 Lumen - 135 lumen/watt - 4000K neutral white - Flicker free - UGR19 - Suitable for the office - 5 year warranty](https://cdn.webshopapp.com/shops/189995/files/458371573/200x200x2/hoftronic-led-panel-60x60-cm-36-watts-4860-lumen-1.jpg)
![LED panel - 60x60 cm - 36 Watts - 4860 Lumen - 135 lumen/watt - 4000K neutral white - Flicker free - UGR19 - Suitable for the office - 5 year warranty](https://cdn.webshopapp.com/shops/189995/files/458371595/200x200x2/hoftronic-led-panel-60x60-cm-36-watts-4860-lumen-1.jpg)
![LED panel - 60x60 cm - 36 Watts - 4860 Lumen - 135 lumen/watt - 4000K neutral white - Flicker free - UGR19 - Suitable for the office - 5 year warranty](https://cdn.webshopapp.com/shops/189995/files/458371566/200x200x2/hoftronic-led-panel-60x60-cm-36-watts-4860-lumen-1.jpg)
![LED panel - 60x60 cm - 36 Watts - 4860 Lumen - 135 lumen/watt - 4000K neutral white - Flicker free - UGR19 - Suitable for the office - 5 year warranty](https://cdn.webshopapp.com/shops/189995/files/458371568/200x200x2/hoftronic-led-panel-60x60-cm-36-watts-4860-lumen-1.jpg)
- Article number: 2714697
INTOLED delivery time
Delivery time
We do everything to deliver the ordered items to you on time. In some cases, circumstances may cause a delivery to be delayed. If this is the case, please contact our customer service.
-
Specifications
Watts: 36 Watt Equivalent watts: 300 Watt Luminous flux: 4860 Lumen Light color: Neutral white Color temperature: 4000K Color rendering index (CRI): >80 LB factor: L80B10 Beam angle: 90° Input power: 200-240V AC Output power: 28-40V DC, 900mA Powerfactor: >0.95 Driver: Ja Dimmable: Yes, depending on type of transformer Material: Aluminum Shape: Square Frame color: White IP-rate: IP20 Dimensions: 595 x 595 x 34 mm Operating temperature: -20° ~ 45° C Certification: CE, EMC, ROHS Including light source: Yes Energy label: A++ Energy label new: E Life span: 50.000 hours Warranty: 5 years EAN: 8720722714697 -
Product description
Energy efficient and cost-effective lighting for offices and schools
LED panels are ideal for office and school classroom lighting. This UGR19 rated LED panel has a high brightness of 4860 lumens while consuming only 36 watts of energy (135 lumens per watt). The LED lamp emits a neutral white light of 4000K, which is ideal for rooms where concentration is required. Unlike other lamps, this one does not flicker, so you will not suffer from headaches or fatigue. The LED panel has a recessed depth of 34mm and is easy to install in a suspended ceiling, but can also be suspended directly from the ceiling using a surface mount frame or a pendant system (both not included).
Please note!
Do you want to install the LED panels in a system ceiling? Make sure you choose the correct dimensions. Dutch and German suspended ceilings have different dimensions:
- Dutch: 60x60 cm
- German: 62x62 cm
Product advantages
- Sustainable: Replace your traditional fluorescent lighting with these energy efficient LED panels.
- Energy efficient: This LED panel has a power consumption of no less than 135 lumens per watt. This saves up to 75% on energy consumption compared to traditional fluorescent lighting.
- Extra slim: The slim design of only 34mm thick saves space when installing this LED panel, compared to traditional LED panels that are on average 40mm thick.
- High light output: Thanks to the slim 15mm aluminium frame, the LED panel has a larger luminous area and therefore more light output.
- UGR19: A low UGR value reduces light annoyance, making it ideal for different types of workspaces. The UGR19 is particularly suitable for offices where screens are in constant use.
- Flicker free: The LED panel comes with a certified transformer that ensures the lamp does not flicker, preventing fatigue and headaches.
- 4000K neutral white light: The LED panel emits a neutral white light. This makes it ideal for offices, workshops and warehouses.
- 90C° beam angle: The LED panel has a beam angle of 90C°, ensuring good light distribution throughout the room.
- Backlit panel: These LED panels use the latest backlighting technology to create a beautiful diffused light that spreads evenly. So you won't see any dark spots in the light and the panel won't discolour over time.
- Non-fading/yellowing: The panel is made from a special polystyrene sheet, which means the panel will not yellow over time.
- Reinforced backing: The special design of the back of this panel provides a strong structure to ensure the best quality.:
- Edge-folded back panel: No more light spilling out of the edges of your panels or annoying critters crawling into the panel thanks to the folded edges on the panel.
- PMMA lenses: The luminaire is equipped with dozens of PMMA lenses that let through much more light than the lenses in 80% of the LED panels on the market, at the same or even lower energy consumption.
- CRI > 80: The high CRI value indicates how "colour-fast" the LED panel reproduces colours. This excellent colour rendering makes it suitable for all applications.
- Burning time: This LED panel has no less than 50,000 burning hours. Based on an average use of 8 hours per day, this means that these lamps will last more than 17 years.
- Safe driver: The included driver safely converts the voltage from 230V to 24-38V.
- Flexible mounting: Choose how you want to mount the LED panel, e.g. in a suspended ceiling, directly on the ceiling or suspended from the ceiling.
- Easy installation: With its light weight and flat design, the LED panel is easy to install using the supplied external driver.
- 5-year warranty: At INTOLED, we deliver only the best quality, which is why this lamp comes with a 5-year warranty. Should anything break during these 5 years, we will replace it free of charge.
Powerful and bright flicker-free light that spreads beautifully
This LED panel has a powerful light output of 4860 lumens, which is also nicely diffused in any office, meeting room or classroom. The LED lamp has a colour temperature of 4000K, which gives a neutral white light. This colour temperature is ideal for long periods of concentration. This lamp also has a CRI (Colour Rendering Index) of over 80, which means it reproduces colours accurately and vividly. What makes this LED lamp unique is its low URG value of 19. This is a measure of light pollution. The lower the value, the less straining the light is on your eyes. A URG19 is therefore ideal for workspaces where computer screens are used.
Typical applications
- Workshops
- Home office
- Classrooms
- Auditoriums
- Meeting room
- Industrial: precision work
- Shop cash registers
In addition, this 60x60 cm LED panel features backlighting technology that reduces light loss and eliminates the need for an LGP diffuser. This technology ensures even light distribution with no dark spots and optimum heat dissipation. In addition, there are no dark spots caused by dropping LEDs, even after prolonged use. The panel contains a non-yellowing polystyrene sheet, so light is evenly distributed from edge to edge across the panel. The PMMA lenses allow much more light to pass through than most other LED panels. This not only gives a higher light output, but is also more energy efficient.
High quality design
This latest model of LED panel is made from the best materials, with a well-thought-out design and excellent workmanship. At only 26mm thick, the panel is particularly easy to install in suspended ceilings. The slim aluminium frame ensures greater light output, while the reinforced backplate gives the luminaire extra strength and durability. The edges have also been carefully designed. They are folded over, which not only makes for a nicer, sleeker design, but also prevents light loss at the sides and prevents small insects from crawling into the lamp.So you can enjoy your LED panels for years without distortion, dark spots or LEDs falling out.:
Sustainable, safe & efficient
This latest model of LED panel is more energy efficient than ever. Whereas regular fluorescent lighting consumes 30 lumens per watt, these LED panels consume no less than 135 lumens per watt. This is a saving of over 75% in energy consumption. In addition, the LED panel has no less than 50,000 burning hours. Based on an average use of 8 hours per day, this equates to more than 17 years. So not only is the panel extremely sustainable in terms of consumption, but also in terms of longevity.:

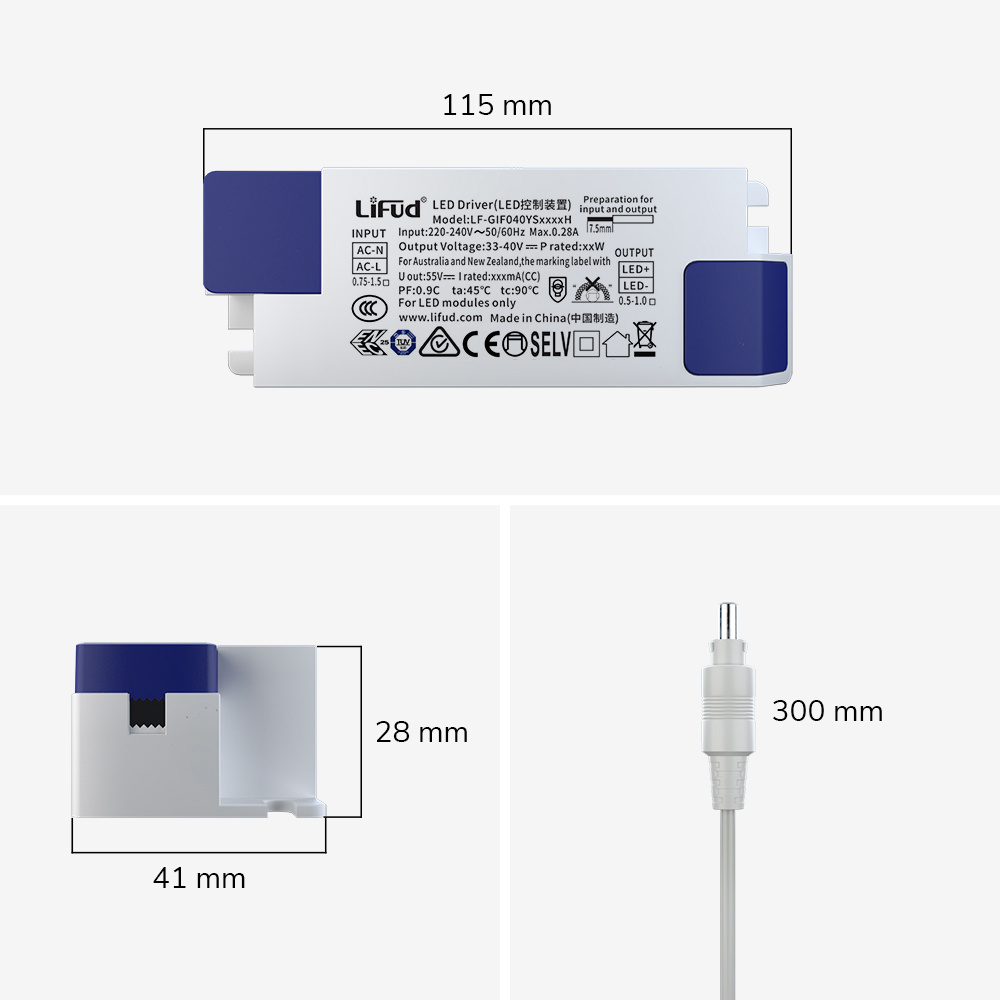

Safe & durable driver:
With the supplied external driver, you can safely connect the panel to the correct voltage by converting the voltage from 230V to 24-38V. Another advantage of the external driver compared to a built-in driver is that it provides better cooling, giving it a longer life. Should the driver fail unexpectedly, only the driver needs to be replaced, not the whole panel. That is more durable!:Easy to install:
These LED panels are suitable for suspended ceilings and are easy to install yourself without any special technical knowledge. Simply remove the old panel, connect the LED panel to the supplied driver and reconnect the panel to the power supply.
Please note! The standard LED panel is supplied without a power cable. Therefore, if you wish to plug the panel into a socket, a power cord must be purchased separately. In case you don't have a suspended ceiling, a mounting frame or suspension kit is required to install the LED panel.:
5-year warranty:
The quality of these LED panels is guaranteed for 5 years. The LED panels are made from the highest quality materials available. The panels also feature the latest backlighting technology, which prevents the panel from discolouring. Enjoy these panels to the full and with low maintenance.
- Downloads
Energy efficient and cost-effective lighting for offices and schools
LED panels are ideal for office and school classroom lighting. This UGR19 rated LED panel has a high brightness of 4860 lumens while consuming only 36 watts of energy (135 lumens per watt). The LED lamp emits a neutral white light of 4000K, which is ideal for rooms where concentration is required. Unlike other lamps, this one does not flicker, so you will not suffer from headaches or fatigue. The LED panel has a recessed depth of 34mm and is easy to install in a suspended ceiling, but can also be suspended directly from the ceiling using a surface mount frame or a pendant system (both not included).
Please note!
Do you want to install the LED panels in a system ceiling? Make sure you choose the correct dimensions. Dutch and German suspended ceilings have different dimensions:
- Dutch: 60x60 cm
- German: 62x62 cm
Product advantages
- Sustainable: Replace your traditional fluorescent lighting with these energy efficient LED panels.
- Energy efficient: This LED panel has a power consumption of no less than 135 lumens per watt. This saves up to 75% on energy consumption compared to traditional fluorescent lighting.
- Extra slim: The slim design of only 34mm thick saves space when installing this LED panel, compared to traditional LED panels that are on average 40mm thick.
- High light output: Thanks to the slim 15mm aluminium frame, the LED panel has a larger luminous area and therefore more light output.
- UGR19: A low UGR value reduces light annoyance, making it ideal for different types of workspaces. The UGR19 is particularly suitable for offices where screens are in constant use.
- Flicker free: The LED panel comes with a certified transformer that ensures the lamp does not flicker, preventing fatigue and headaches.
- 4000K neutral white light: The LED panel emits a neutral white light. This makes it ideal for offices, workshops and warehouses.
- 90C° beam angle: The LED panel has a beam angle of 90C°, ensuring good light distribution throughout the room.
- Backlit panel: These LED panels use the latest backlighting technology to create a beautiful diffused light that spreads evenly. So you won't see any dark spots in the light and the panel won't discolour over time.
- Non-fading/yellowing: The panel is made from a special polystyrene sheet, which means the panel will not yellow over time.
- Reinforced backing: The special design of the back of this panel provides a strong structure to ensure the best quality.:
- Edge-folded back panel: No more light spilling out of the edges of your panels or annoying critters crawling into the panel thanks to the folded edges on the panel.
- PMMA lenses: The luminaire is equipped with dozens of PMMA lenses that let through much more light than the lenses in 80% of the LED panels on the market, at the same or even lower energy consumption.
- CRI > 80: The high CRI value indicates how "colour-fast" the LED panel reproduces colours. This excellent colour rendering makes it suitable for all applications.
- Burning time: This LED panel has no less than 50,000 burning hours. Based on an average use of 8 hours per day, this means that these lamps will last more than 17 years.
- Safe driver: The included driver safely converts the voltage from 230V to 24-38V.
- Flexible mounting: Choose how you want to mount the LED panel, e.g. in a suspended ceiling, directly on the ceiling or suspended from the ceiling.
- Easy installation: With its light weight and flat design, the LED panel is easy to install using the supplied external driver.
- 5-year warranty: At INTOLED, we deliver only the best quality, which is why this lamp comes with a 5-year warranty. Should anything break during these 5 years, we will replace it free of charge.
Powerful and bright flicker-free light that spreads beautifully
This LED panel has a powerful light output of 4860 lumens, which is also nicely diffused in any office, meeting room or classroom. The LED lamp has a colour temperature of 4000K, which gives a neutral white light. This colour temperature is ideal for long periods of concentration. This lamp also has a CRI (Colour Rendering Index) of over 80, which means it reproduces colours accurately and vividly. What makes this LED lamp unique is its low URG value of 19. This is a measure of light pollution. The lower the value, the less straining the light is on your eyes. A URG19 is therefore ideal for workspaces where computer screens are used.
Typical applications
- Workshops
- Home office
- Classrooms
- Auditoriums
- Meeting room
- Industrial: precision work
- Shop cash registers
In addition, this 60x60 cm LED panel features backlighting technology that reduces light loss and eliminates the need for an LGP diffuser. This technology ensures even light distribution with no dark spots and optimum heat dissipation. In addition, there are no dark spots caused by dropping LEDs, even after prolonged use. The panel contains a non-yellowing polystyrene sheet, so light is evenly distributed from edge to edge across the panel. The PMMA lenses allow much more light to pass through than most other LED panels. This not only gives a higher light output, but is also more energy efficient.
High quality design
This latest model of LED panel is made from the best materials, with a well-thought-out design and excellent workmanship. At only 26mm thick, the panel is particularly easy to install in suspended ceilings. The slim aluminium frame ensures greater light output, while the reinforced backplate gives the luminaire extra strength and durability. The edges have also been carefully designed. They are folded over, which not only makes for a nicer, sleeker design, but also prevents light loss at the sides and prevents small insects from crawling into the lamp.So you can enjoy your LED panels for years without distortion, dark spots or LEDs falling out.:
Sustainable, safe & efficient
This latest model of LED panel is more energy efficient than ever. Whereas regular fluorescent lighting consumes 30 lumens per watt, these LED panels consume no less than 135 lumens per watt. This is a saving of over 75% in energy consumption. In addition, the LED panel has no less than 50,000 burning hours. Based on an average use of 8 hours per day, this equates to more than 17 years. So not only is the panel extremely sustainable in terms of consumption, but also in terms of longevity.:
Safe & durable driver:
With the supplied external driver, you can safely connect the panel to the correct voltage by converting the voltage from 230V to 24-38V. Another advantage of the external driver compared to a built-in driver is that it provides better cooling, giving it a longer life. Should the driver fail unexpectedly, only the driver needs to be replaced, not the whole panel. That is more durable!:
Easy to install:
These LED panels are suitable for suspended ceilings and are easy to install yourself without any special technical knowledge. Simply remove the old panel, connect the LED panel to the supplied driver and reconnect the panel to the power supply.
Please note! The standard LED panel is supplied without a power cable. Therefore, if you wish to plug the panel into a socket, a power cord must be purchased separately. In case you don't have a suspended ceiling, a mounting frame or suspension kit is required to install the LED panel.:
5-year warranty:
The quality of these LED panels is guaranteed for 5 years. The LED panels are made from the highest quality materials available. The panels also feature the latest backlighting technology, which prevents the panel from discolouring. Enjoy these panels to the full and with low maintenance.
Watts: | 36 Watt |
Equivalent watts: | 300 Watt |
Luminous flux: | 4860 Lumen |
Light color: | Neutral white |
Color temperature: | 4000K |
Color rendering index (CRI): | >80 |
LB factor: | L80B10 |
Beam angle: | 90° |
Input power: | 200-240V AC |
Output power: | 28-40V DC, 900mA |
Powerfactor: | >0.95 |
Driver: | Ja |
Dimmable: | Yes, depending on type of transformer |
Material: | Aluminum |
Shape: | Square |
Frame color: | White |
IP-rate: | IP20 |
Dimensions: | 595 x 595 x 34 mm |
Operating temperature: | -20° ~ 45° C |
Certification: | CE, EMC, ROHS |
Including light source: | Yes |
Energy label: | A++ |
Energy label new: | E |
Life span: | 50.000 hours |
Warranty: | 5 years |
EAN: | 8720722714697 |
