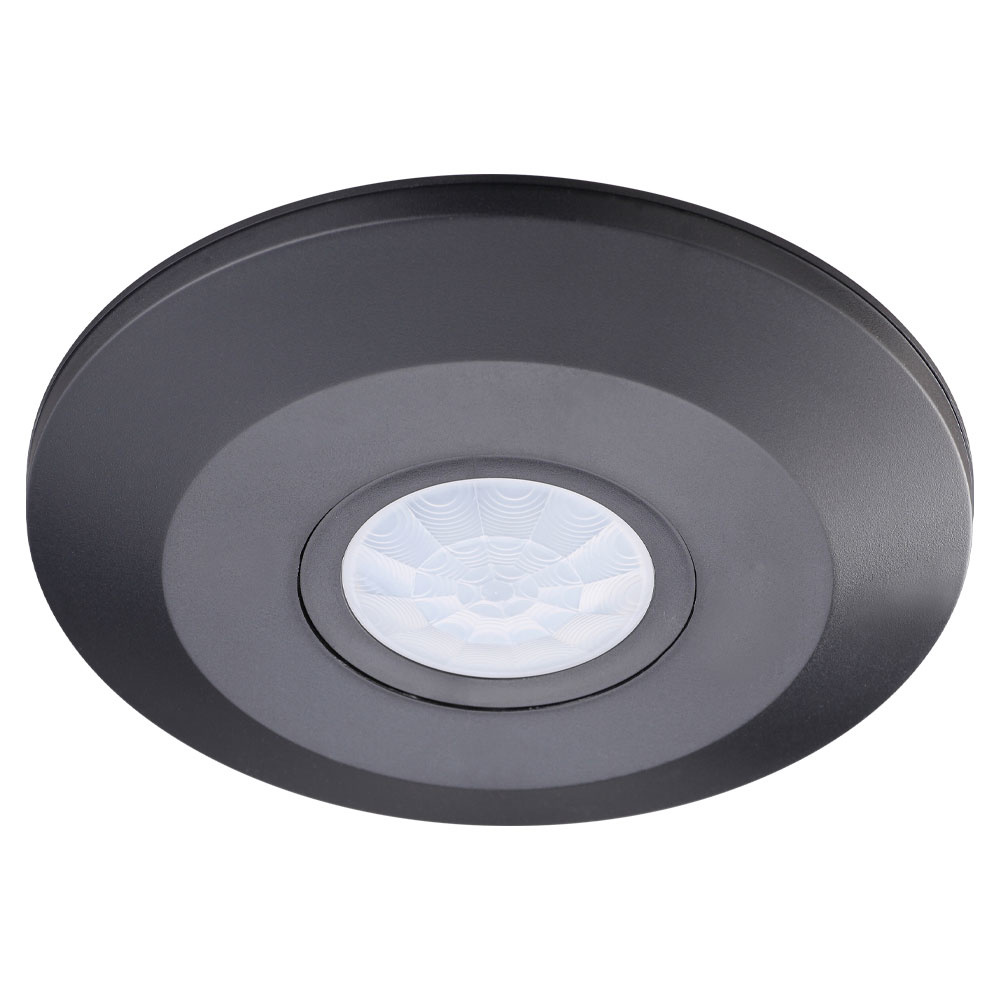

HOFTRONIC™ - PIR motion sensor with twilight switch 360° range 6m Maximum 1000 Watt IP20 surface mounted color black

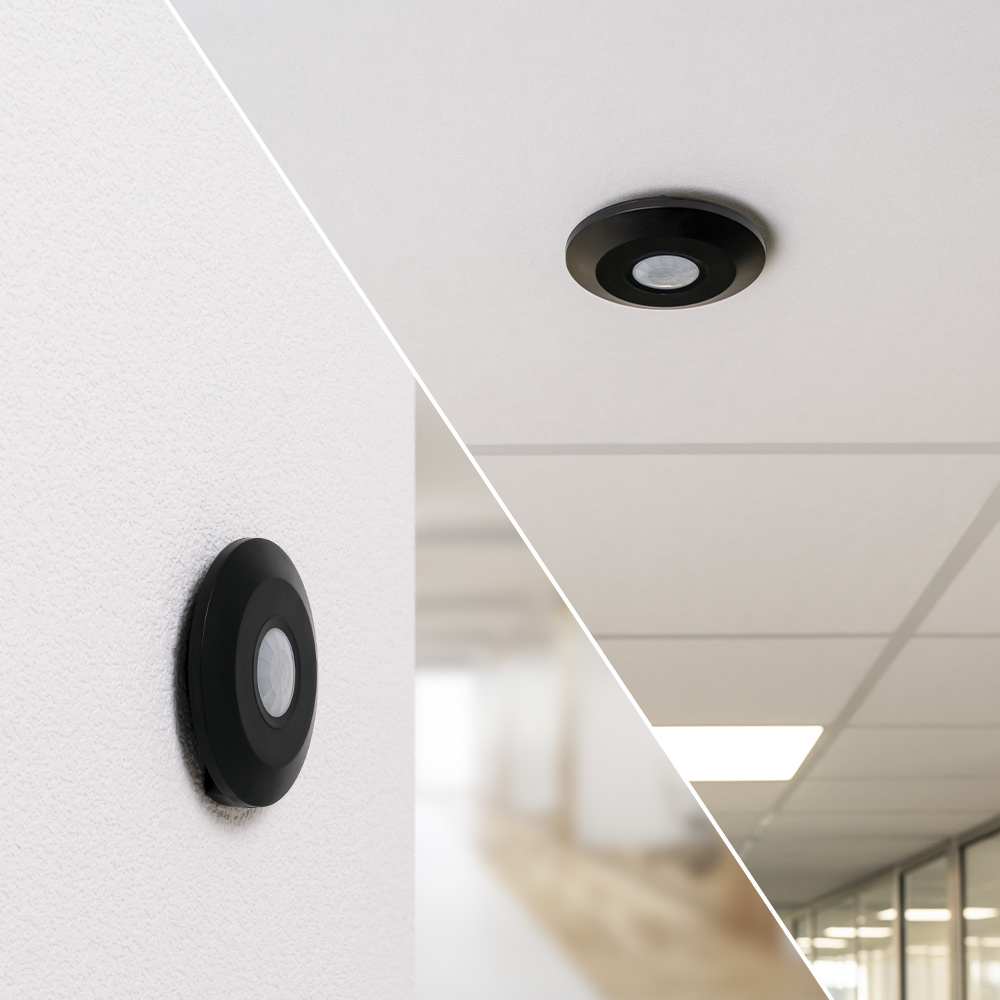

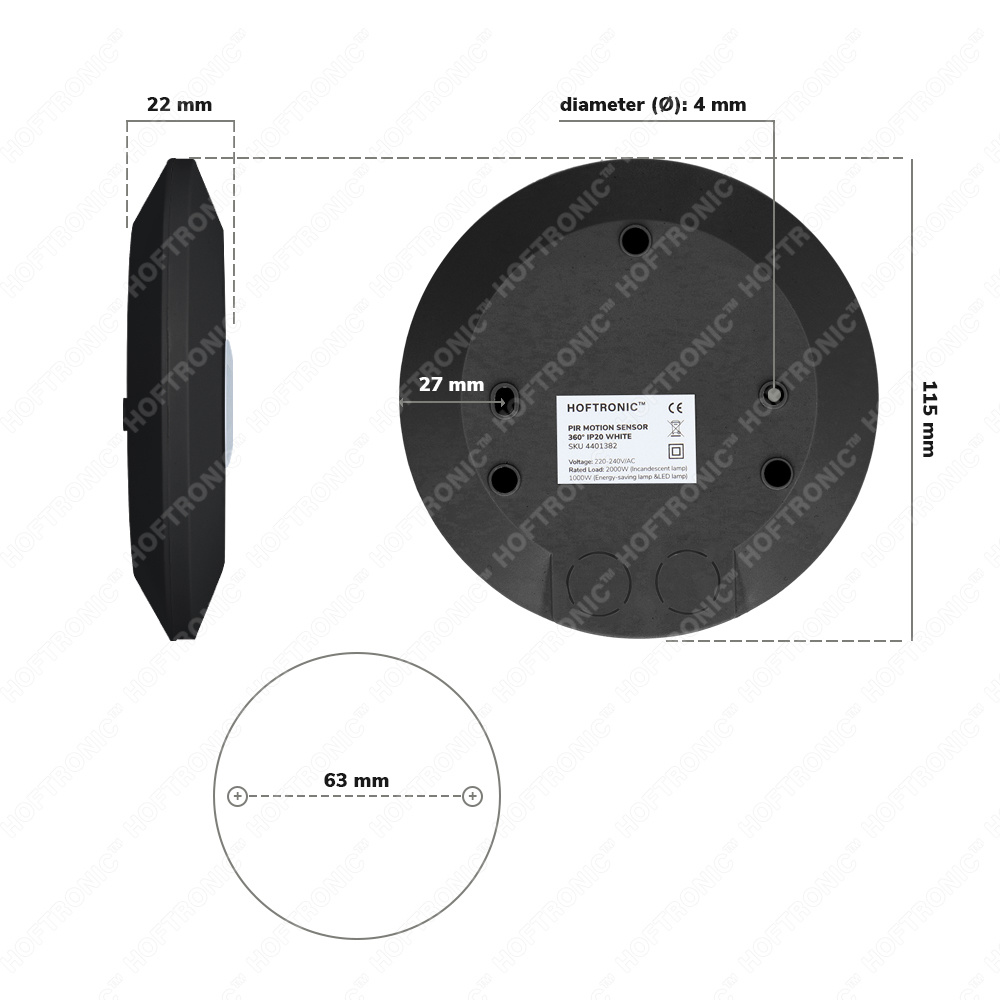

This PIR motion sensor is ideal for indoor use due to its IP20 classification. The motion sensor is made of black plastic, and fits perfectly on your ceiling. The sensor offers the possibility to vary the lighting time and the intensity of the ambient light thanks to the built-in twilight sensor. The motion sensor is suitable for all types of lamp holders thanks to the connection via screw terminals at the rear. This sensor is characterized by an ultra-thin 2.6 cm shape and a modern design. The PIR sensor is compatible with traditional incandescent lamps up to a maximum of 2000W and with LED lamps up to a maximum of 1000W.

Installation of motion sensor

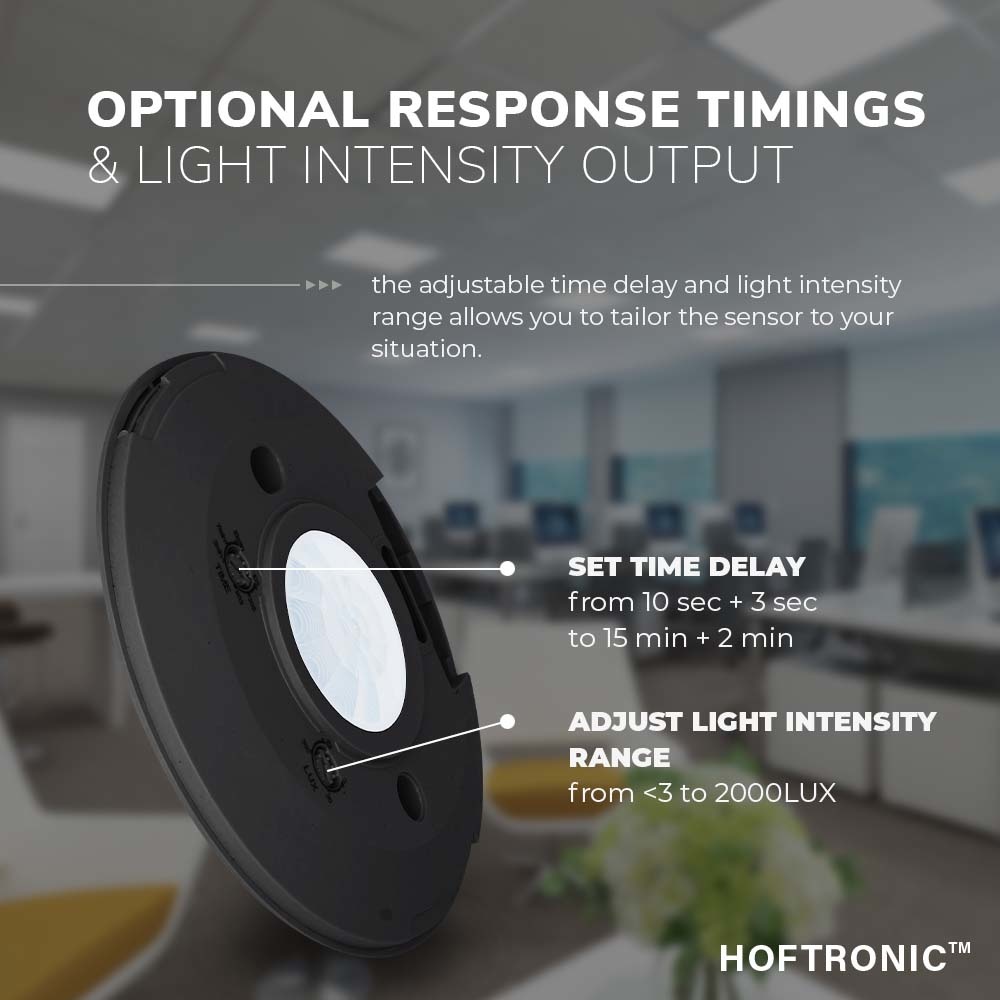

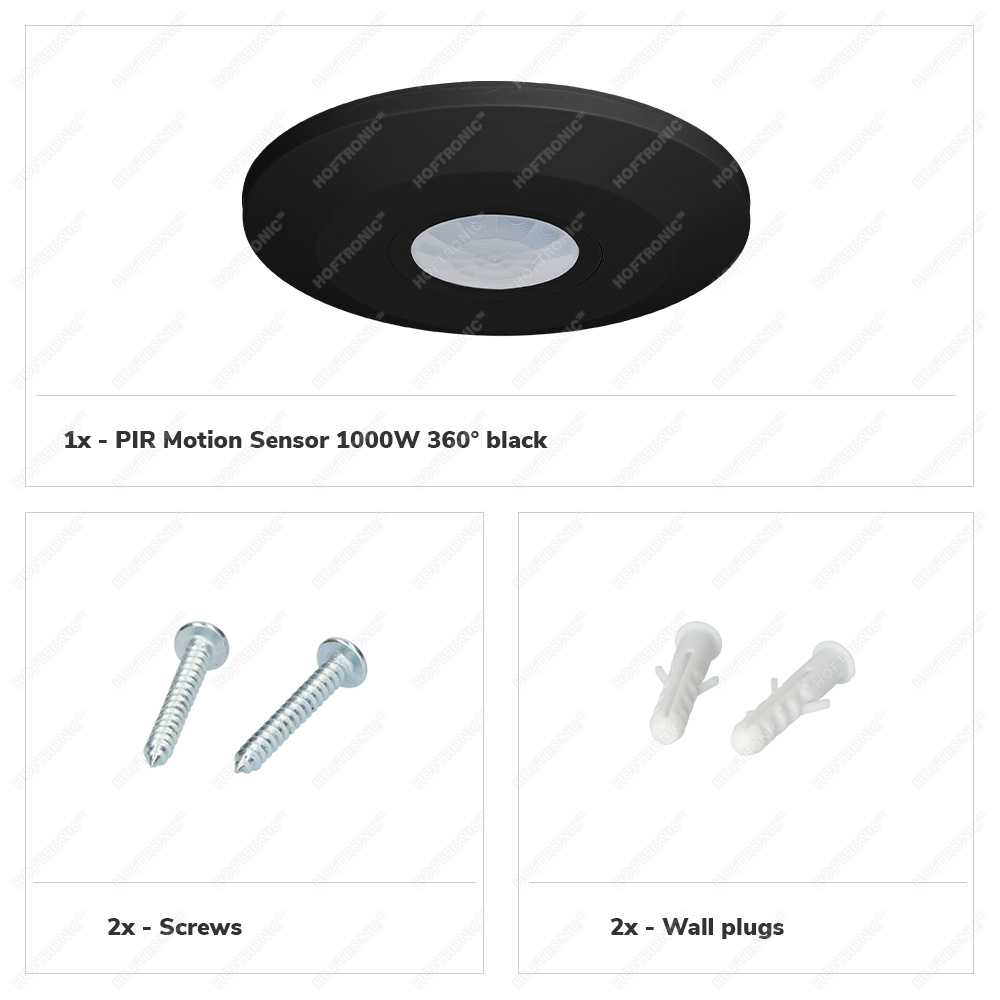

The installation of this motion sensor is very easy due to the included installation package, this includes 2 screws with wall plugs. The motion detector is suitable for installation at a variable height between 2.2 and 4 meters. With a detection distance of 6 meters under a detection range of 360 °, this motion detector screens a wide range with which you can optimally set it as desired. The activation time of the lamp can be adjusted with a minimum activation time of 10 ± 3 seconds and a maximum activation time of 15 ± 2 minutes.

The motion sensor is always active, which means the twilight switch only works on the motion sensor. This motion sensor can therefore not be used separately. When you set the twilight switch to a certain LUX value (total light environment), it will only switch on at this value when motion is detected. The functions cannot be switched off separately.
